Unlocking the Power of IoT-based Smart Healthcare Monitoring System

Healthcare is moving beyond monitoring that happens only inside hospitals and clinics. Connected devices now allow care teams to receive health data while patients remain at home or continue daily routines. A healthcare monitoring system using IoT connects sensors with software and clinical systems. It can collect patient readings and transfer them for review.

Yet data collection alone does not make monitoring useful. The system also needs reliable devices and accurate data. It needs secure transmission and clear alert rules. It also needs a defined clinical response. This guide explains how those parts work together and what healthcare organizations need to consider before building a connected monitoring system.

What Is a Healthcare Monitoring System Using IoT?

A healthcare monitoring system using IoT connects medical devices with software platforms through the Internet of Things (IoT). IoT refers to physical devices that collect and exchange data through connected networks.

The system can collect patient readings through sensors or connected medical devices. It can then send that information to a digital platform for processing and review. Care teams may view the data through dashboards or connected clinical systems.

An IoT healthcare monitoring system is more than a wearable device or sensor. The complete setup can include connected devices and communication networks. It can also include data processing systems and clinical dashboards. Some systems can connect with an Electronic Health Record (EHR). An EHR stores digital patient health information used during care.

IoT Monitoring vs IoMT vs Remote Patient Monitoring

Term	Meaning	Role in Healthcare
Internet of Things or IoT	IoT refers to physical devices that connect through networks and exchange data.	It can include wearable sensors and connected monitoring devices used to collect health data.
Internet of Medical Things or IoMT	IoMT refers specifically to connected medical devices and healthcare systems.	It focuses on medical data collection and communication between devices and healthcare platforms.
Remote Patient Monitoring or RPM	RPM is a care approach that uses connected technology to monitor patients outside traditional clinical settings.	IoT remote patient monitoring allows care teams to receive patient readings while patients remain outside hospitals or clinics.
IoT patient monitoring system	This refers to the connected technology used to collect and transfer patient health readings.	It forms the technical foundation that can support an RPM program.

These concepts work together, but they are not identical. IoT describes the wider connected device concept. IoMT applies connected technology to medical environments. RPM describes how healthcare teams use this technology as part of patient care.

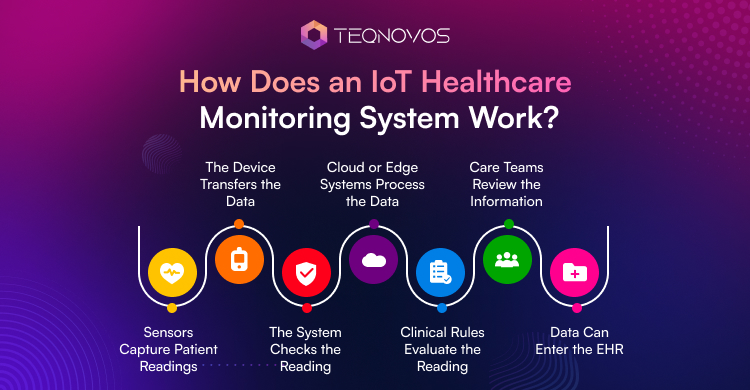

How Does an IoT Healthcare Monitoring System Work?

An IoT healthcare monitoring system moves patient data through a connected workflow. Each stage has a clear role. The system starts with data collection and ends with clinical review or action.

1. Sensors Capture Patient Readings

Connected sensors measure health data such as heart rate, blood pressure, or blood oxygen levels. The device records the reading at a set time or during continuous monitoring.

2. The Device Transfers the Data

The device sends the reading through Bluetooth, WiFi, or a cellular network. Some systems send data directly to a cloud platform. Others use a gateway that connects local devices with remote systems.

3. The System Checks the Reading

The IoT health monitoring system can check the data before further processing. It may identify missing values, duplicate readings, or unusual measurements. This step improves data quality.

4. Cloud or Edge Systems Process the Data

Cloud computing processes data on remote servers. Edge computing processes data closer to the connected device. The system may use either approach based on speed and connectivity needs.

5. Clinical Rules Evaluate the Reading

The platform compares the reading with configured monitoring rules. A reading outside an expected range may trigger an alert for review.

6. Care Teams Review the Information

Clinicians can view relevant data through a dashboard or a connected clinical system. The platform can show trends and alerts that need attention.

7. Data Can Enter the EHR

The system may send approved information to an Electronic Health Record (EHR). This keeps monitoring data connected with the wider patient record.

A healthcare monitoring system using IoT becomes useful when each stage works together. Reliable devices and accurate data matter. Clear alert rules and clinical response workflows matter just as much.

What Health Data Can IoT Monitoring Systems Track?

An IoT-based health monitoring system can track different health measurements based on the care goal and selected device. It does not need to collect every possible metric. The system works best when each measurement has a clear purpose. Common measurements include heart rate, blood pressure, and blood oxygen levels.

What Makes Patient Monitoring Data Reliable?

An IoT patient monitoring system needs reliable data before it can guide any clinical response. A high number of readings does not guarantee useful monitoring. The system needs to check the quality of each measurement first.

Data quality can suffer when a patient uses a device incorrectly. A weak sensor can also produce an unusual reading. Network delays may cause old data to arrive late. Duplicate records can create another problem.

The platform can apply validation rules before storing or displaying a reading. These rules may detect missing values, unrealistic measurements, or repeated records. The system can also flag device errors for review.

Reliable monitoring also depends on context. A single unusual reading may not always require action. The care team may need to review recent trends or repeated measurements before making a decision.

This approach reduces unnecessary alerts. It also gives clinicians a clearer view of which readings need attention.

How IoT Monitoring Systems Manage Alerts Without Creating Alert Fatigue

An IoT healthcare monitoring system can generate alerts when patient readings cross defined limits. Yet too many alerts can reduce their value. A stronger alert strategy focuses on relevance and response.

• Set clear thresholds: Alert limits need to match the monitoring goal and patient condition.
• Use severity levels: Not every reading needs the same level of urgency. The system can separate routine alerts from critical ones.
• Review repeated readings: A single unusual value may not always need escalation. Repeated abnormal readings can provide better context.
• Assign alert ownership: Every alert needs a defined recipient. The care team needs to know who reviews it and who takes the next action.
• Track acknowledgment: Teams can record when an alert was reviewed and what action followed.

Effective alert management reduces unnecessary notifications.

What Happens When Connectivity Fails in an IoT Health Monitoring System?

An IoT health monitoring system cannot always depend on a stable network. WiFi may drop. Mobile coverage may weaken. A device may also lose contact with the monitoring platform. The system needs a clear response for these situations.

• Store readings locally: A device or gateway can keep recent readings until the connection returns.
• Retry data transfer: The system can attempt transmission again after connectivity improves.
• Sync delayed readings: Stored data can move to the platform once the network becomes available.
• Track connection status: Care teams can see when a device stops sending data for an expected period.
• Use edge processing when needed: Edge computing processes selected data close to the device. This can support local rules when cloud access is limited.
• Prioritize critical events: Some systems can treat urgent readings differently from routine data when connectivity becomes unstable.

The right offline strategy depends on the monitoring goal and device capability. A system used for routine tracking may tolerate delayed synchronization, and a system linked to urgent monitoring may need faster local processing and stronger backup connectivity.

How IoT Monitoring Connects With EHR Systems

An IoT remote patient monitoring platform becomes more useful when relevant readings connect with the Electronic Health Record (EHR). The connection can move selected monitoring data into existing healthcare workflows. This reduces the need to review separate systems for every patient update.

Important integration factors include:

• Patient matching: Each reading must connect with the correct patient record.
• Data mapping: Device data needs a structure that the receiving system can understand.
• Access control: Only authorized users and systems should access sensitive information.
• Workflow placement: Monitoring data needs to appear where clinicians already review patient information.

Strong interoperability keeps connected monitoring from becoming an isolated data source. It makes the information easier to use within existing care processes.

Security and Privacy Across an IoT Health Monitoring System

An IoT-based health monitoring system handles sensitive patient information across several connected layers. Security needs to protect the device, the network, and the software platform. It also needs to cover the full device lifecycle.

Device Security

Connected devices need secure identity controls. Firmware needs protection against unauthorized changes. Access to device settings also needs clear restrictions.

Platform Security

An IoT health monitoring system needs strong authentication and role based access. Audit records can also track who viewed or changed sensitive information.

Integration Security

Connections with EHR platforms and other healthcare systems need protected APIs. Access permissions need to limit what each connected system can read or change.

Device Lifecycle Security

Security continues after deployment. Teams need processes for software updates, security patches, and device retirement. Moreover, strong healthcare data privacy and security practices help protect patient information as it moves between connected devices and software platforms.

Key Benefits of IoT Healthcare Monitoring

The value comes from better access to relevant health data rather than simply collecting more readings. Here we have listed a few major benefits of IoT healthcare monitoring software:

• Less manual data entry: Connected devices can transfer readings directly to the monitoring platform. This reduces repeated manual recording.
• Faster review of important changes: Monitoring rules can highlight readings that need closer attention.
• More flexible monitoring: Patients can share selected health data while remaining outside a hospital or clinic.
• Stronger care continuity: Connected information can give care teams a clearer view of patient progress between appointments.
• Better chronic condition monitoring: An IoT remote patient monitoring approach can track relevant measurements over longer periods when ongoing observation is needed.

The main benefit is not constant data collection. It is giving healthcare teams useful information at the right point in the care process.

Common Challenges in Building an IoT Healthcare Monitoring System

A healthcare monitoring system using IoT can become difficult to scale when technical and clinical requirements are not planned together. The main challenges usually appear during integration and daily use.

• Device compatibility: Different devices may use different data formats or communication methods. This can make integration harder.
• Integration complexity: Healthcare organizations may use several clinical systems. Connecting new monitoring technology with existing platforms can require careful mapping.
• Patient compliance: Tracking relies on the proper use of the devices by the patients. Failure to track the readings may affect the quality of data collected.
• Device maintenance: Battery status, firmware, and hardware condition have to be monitored.
• Scalability pressure: An increase in the number of patients and devices leads to an increase in the amount of data.
• Workflow mismatch: Technology can create extra work when it does not fit existing clinical processes.

A successful smart healthcare monitoring system using IoT needs planning that covers technology, patient use, and clinical operations from the start. Healthcare organizations may also use healthcare app development services to build monitoring platforms that connect devices with clinical systems.

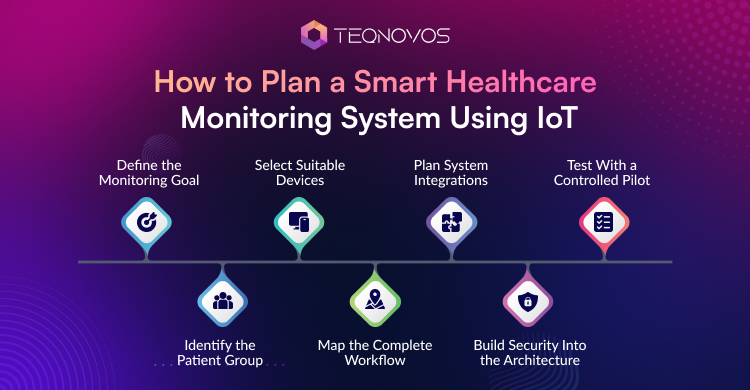

How to Plan a Smart Healthcare Monitoring System Using IoT

Building a Smart healthcare monitoring system using IoT requires more than selecting devices and writing software. The planning process needs to connect technical requirements with the actual care model.

1. Define the Monitoring Goal

The team needs to identify what condition or health metric requires monitoring. This decision shapes the device and data requirements.

2. Identify the Patient Group

The system needs to match the needs of the people who will use it. Age, mobility, and technical comfort can influence product design.

3. Select Suitable Devices

Teams need to compare device accuracy, compatibility, and battery needs. The selected device also needs to fit the intended monitoring environment.

4. Map the Complete Workflow

The project team needs to define where patient data goes and who reviews it. The workflow also needs clear actions for unusual readings.

5. Plan System Integrations

The platform may need EHR integration services to connect monitoring data with existing healthcare software.

6. Build Security Into the Architecture

Access controls, encryption, and device security need to be part of the initial system design. They should not be added only after development.

7. Test With a Controlled Pilot

A limited pilot can reveal device issues and workflow gaps before wider deployment. Teams can then improve the system based on actual use.

Organizations that need connected software expertise can also evaluate IoT application development services when planning the application layer and device integration requirements.

A healthcare monitoring system using IoT works best when technical decisions follow a clear monitoring purpose instead of driving it.

How to Measure the Performance of an IoT Monitoring System

An IoT patient monitoring system needs regular performance checks after launch. Teams need to measure both technical reliability and workflow effectiveness.

• Device connection success: Track how often devices connect and send readings without failure.
• Missing reading rate: Measure how often expected patient data does not reach the platform.
• Synchronization failures: Monitor how often stored readings fail to update after connectivity returns.
• Alert response time: Track how quickly care teams review important alerts.
• Patient adherence: Measure how consistently patients use assigned monitoring devices.
• Platform availability: Review system uptime and access issues.
• Device support needs: Track battery problems, device faults, and replacement requests.

These metrics show where the monitoring process works well and where teams need to improve reliability.

Conclusion

A healthcare monitoring system using IoT can extend patient monitoring beyond traditional care settings. Its real value depends on more than connected devices. The system also needs reliable data, stable connectivity, and secure architecture. Clear workflows and useful alerts are equally important.

Healthcare organizations need to plan each part around the actual monitoring goal. Device choice, integration, and clinical ownership need to work together.

A well designed Smart healthcare monitoring system using IoT can make patient data easier to review and act on. The strongest systems focus on useful clinical information instead of simply collecting more readings.
